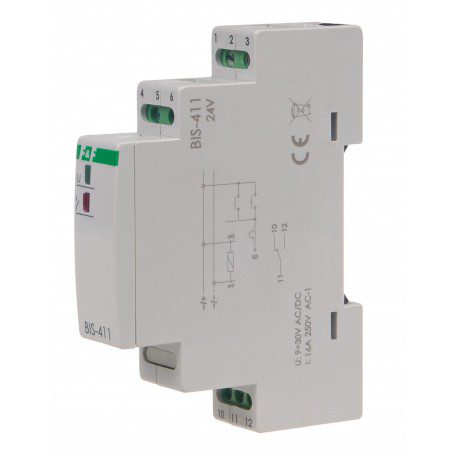

BIS-411 BISTABLE IMPULSE RELAY 16A 1P 1M 9V-30V AC/DC
The electronic bistable relay allows for the control of lighting or other devices from several different points using parallel connected control buttons.
Application
Power supply 9÷30 V AC/DC. Maximum load 16 A. For 35 mm rail.
Technical Data
- Supply voltage: 9÷30 V AC/DC
- Local control: YES
- Maximum load current AC-1: 16 A
- Actuating element: relay
- Contact configuration: 1 × NO/NC
- Contact separation: YES
- Surge current resistance: NO
- Number of channels: 1
- Functionality: on/off
- Activation delay: 0.1 ÷ 0.2 s
- Control impulse current: less than 1 mA
- Compatibility with illuminated buttons: NO
- State memory after power loss: NO
- Time delay function: NO
- Dedicated central control inputs: NO
- Radio control: NO
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Power consumption: 0.7 W
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Mounting: on 35 mm rail
- Protection degree: IP20
