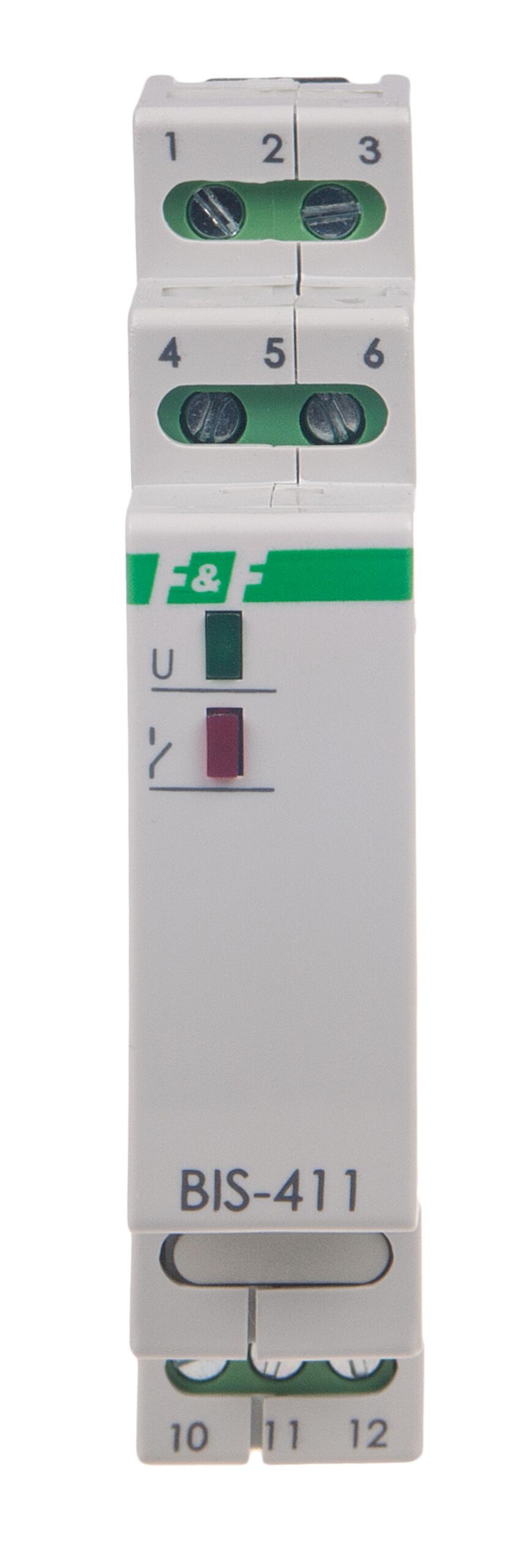

BIS-411 Bistable Pulse Relay 16A 1P 1M 230V AC
The electronic bistable relay allows for the control of lighting or other devices from multiple points using parallel connected control buttons.
Application
It can be used to control lighting in large areas where management from multiple locations is needed. Ideal for both residential and commercial applications, it works with illuminated buttons, enhancing its functionality and user convenience.
Technical Data
- Power supply: 230 V
- Maximum load: 16 A
- For 35mm rail
- Supply voltage: 165÷265 V AC
- Local control: YES
- Maximum load current AC-1: 16 A
- Actuating element: relay
- Contact configuration: 1 × NO/NC
- Contact separation: YES
- Surge current resistance: NO
- Number of channels: 1
- Functionality: on/off
- Response delay: 0.1 ÷ 0.2 s
- Control impulse current: less than 5 mA
- Compatibility with illuminated buttons: YES
- State memory after power failure: NO
- Time delay function: NO
- Dedicated central control inputs: NO
- Radio control: NO
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Power consumption: 0.7 W
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Mounting: on 35 mm rail
- Protection degree: IP20
