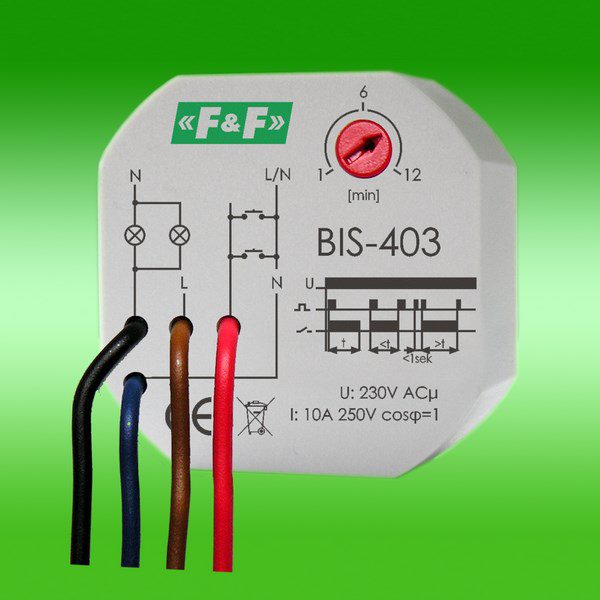

BIS-403 BISTABLE IMPULSE RELAY 10A 230V AC WITH TIMER
The bistable relay BIS-403 allows for the control of lighting or other devices from multiple points. Ideal for applications requiring control from one or several locations.
Application
The electronic bistable relay with a timer switch, perfect for installation in flush-mounted boxes, enables convenient control of lighting and other electrical devices.
Technical Data
- Power supply: 230 V AC
- Maximum load: 10 A
- Power consumption: 0.8 W
- Load AC-1: 10 A
- Control impulse current: less than 1 mA
- Switch-off time: 1÷12 min.
- Operating temperature: -25 ÷ 50 °C
- Dimensions: Ø 55 mm; height: 13 mm
- Installation in flush-mounted box: Ø60
- Protection degree: IP20
- Tightening torque: 0.4 Nm
- Connection: 4×DY 1mm²; length: 10 cm
