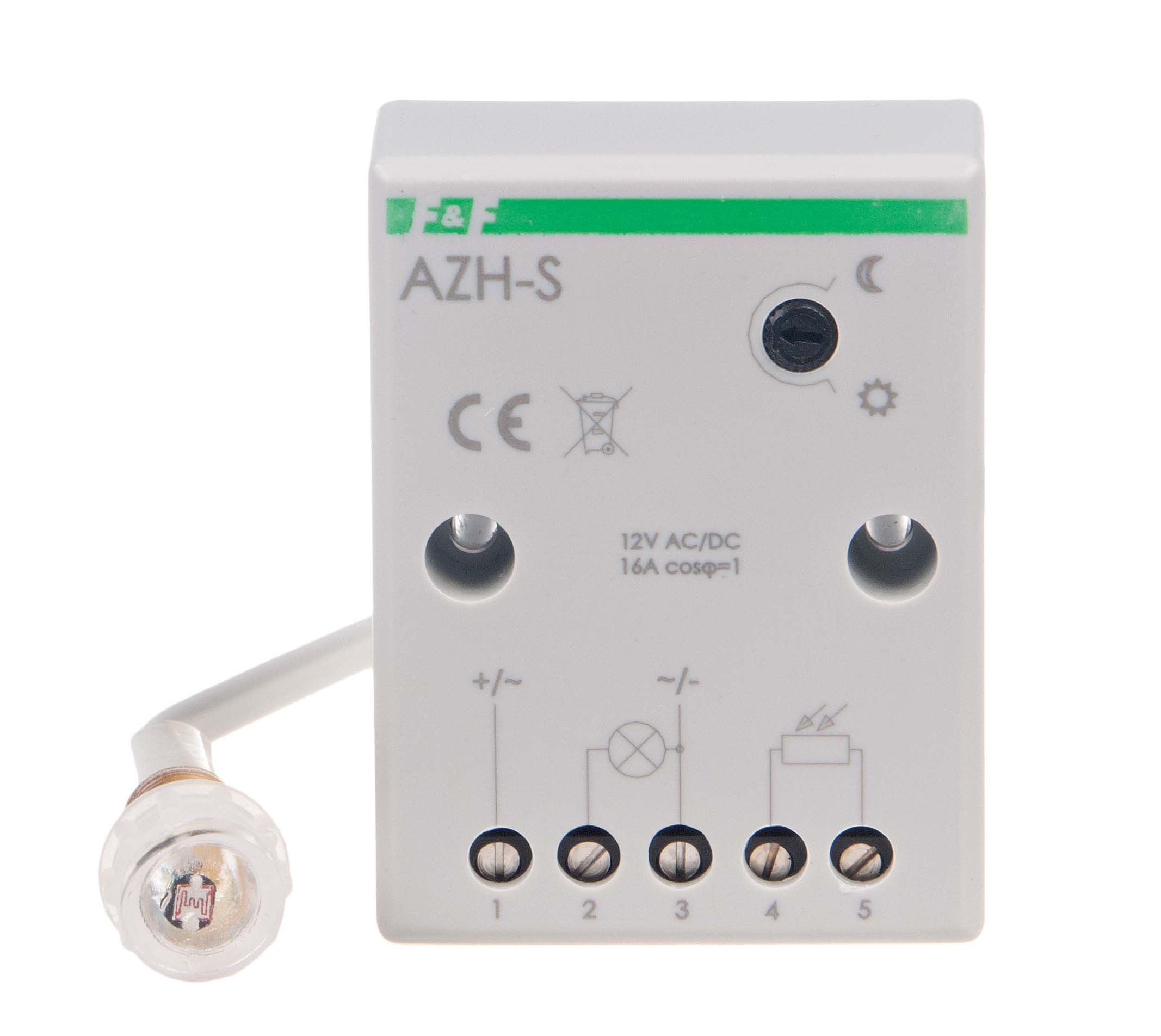

AZH-S12 TWILIGHT SWITCH NT 16A 12V AC IP65 HERMETIC PROBE

The AZH-S12 twilight switch is designed for automatic control of light sources based on light intensity, ensuring comfort and energy savings.

Application

The twilight switch is used to turn lighting on and off according to the daily cycle, making it an ideal solution for gardens, outdoor areas, and other places where lighting system automation is needed.

Technical Data

• Power supply: 12 V AC/DC
• Maximum load: 16 A
• Voltage tolerance: -10 ÷ 10 %
• Actuating element: relay
• Contact configuration: 1 × NO
• Activation threshold: adjustable 2 ÷ 1000 Lx, set at approx. 7 Lx
• Hysteresis: approx. 15 Lx
• Turn-on delay: approx. 10 s
• Turn-off delay: approx. 20 s
• Probe protection degree: IP65
• Light-sensitive element: external probe Ø 10 mm
• Connection: screw terminals 4.0 mm²
• Tightening torque: 0.5 Nm
• Power consumption: 0.56 W
• Operating temperature: -25 ÷ 50 °C
• Dimensions: 51×67×26 mm (± 1 mm)
• Mounting: surface-mounted
• Protection degree: IP20
