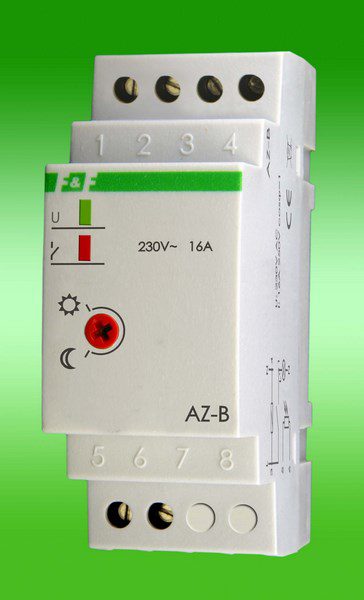

AZ-B Twilight Switch 16A 2M 2-1000LX 230V AC
The AZ-B twilight switch is an ideal solution for controlling light sources depending on the intensity of illumination, providing convenience and energy efficiency.
Application
This device automatically turns the lighting on and off depending on the brightness level. With the use of an external probe, users can enjoy comfort as the system operates without the need for manual switching of light sources.
Technical Specifications
- Power supply: 230 V AC
- Maximum load: 16 A
- For rail: 35 mm
- External probe: Ø10 mm included
- Voltage tolerance: -10 ÷ 10 %
- Maximum load current AC-1: 16 A
- Actuating element: relay
- Contact configuration: 1 × NO
- Contact separation: NO
- Activation threshold: adjustable 2 ÷ 1000 Lx, set at approx. 7 Lx
- Hysteresis: approx. 15 Lx
- Activation delay for turning on: approx. 10 s
- Activation delay for turning off: approx. 20 s
- Probe protection degree: IP65
- Light-sensitive element: external probe Ø 10 mm
- Connection: screw terminals 4.0 mm²
- Tightening torque: 0.5 Nm
- Power consumption: 0.8 W
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 2 modules (35 mm)
- Mounting: on 35 mm rail
- Protection degree: IP20
