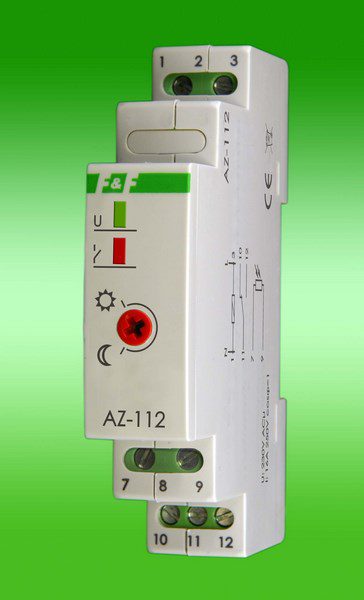

AZ-112 DAWN SENSOR 16A 1M 2-1000LX 230V AC EXTERNAL PROBE Ø10 IP65

The AZ-112 dawn sensor is an ideal solution for automatic control of light sources depending on the intensity of illumination.

Application

The dawn sensor is used to turn on and off energy receivers, such as lamps, depending on the time of day. It allows for convenient and energy-efficient lighting management, which affects user comfort and energy savings.

Technical Data

• Power supply: 230 V AC
• Maximum load: 16 A
• External probe: Ø10 mm included
• Voltage tolerance: -10 ÷ 10 %
• Activation threshold: adjustable from 2 ÷ 1000 Lx
• Hysteresis: approx. 15 Lx
• Turn-on delay: approx. 10 s
• Turn-off delay: approx. 20 s
• Probe protection rating: IP65
• Mounting: on a 35 mm rail
• Dimensions: 1 module (18 mm)
• Power consumption: 0.56 W
• Operating temperature: -25 ÷ 50 °C
