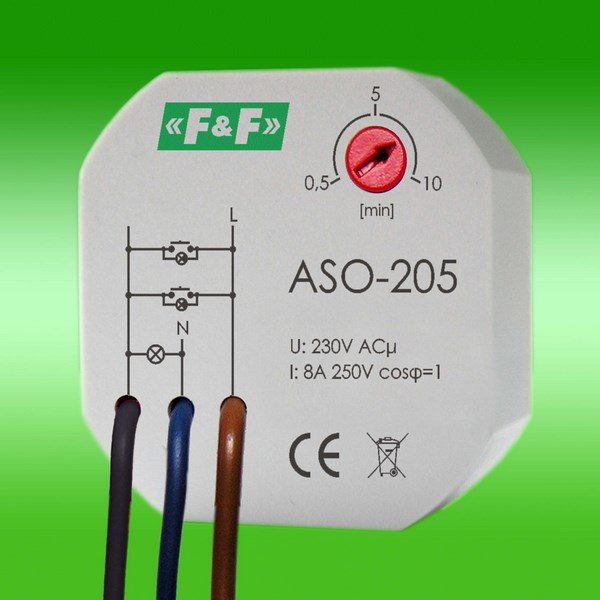

ASO-205 Staircase Switch PT 10A 1Z 0.5-10MIN 230V AC IP20

The ASO-205 staircase switch is a modern solution for automating lighting in corridors and staircases, providing convenient and efficient lighting management.

Application

The device is designed to keep the lighting on for a specified period, after which it automatically turns off. Ideal for all public utility facilities and private homes.

Technical Data

• Power supply voltage: 230 V AC
• Maximum load: 10 A
• Actuating element: relay
• Contact configuration: 1 × NO
• Response delay: < 1 s
• Switch-off delay: adjustable 0.5 ÷ 10 min
• Compatibility with illuminated buttons: YES
• Connection: 3×DY 1.0mm², length: 10 cm
• Power consumption: 0.4 W
• Operating temperature: -25 ÷ 50 °C
• Dimensions: Ø 55 mm; height: 13 mm
• Installation in flush-mounted box: Ø60
• Protection class: IP20
