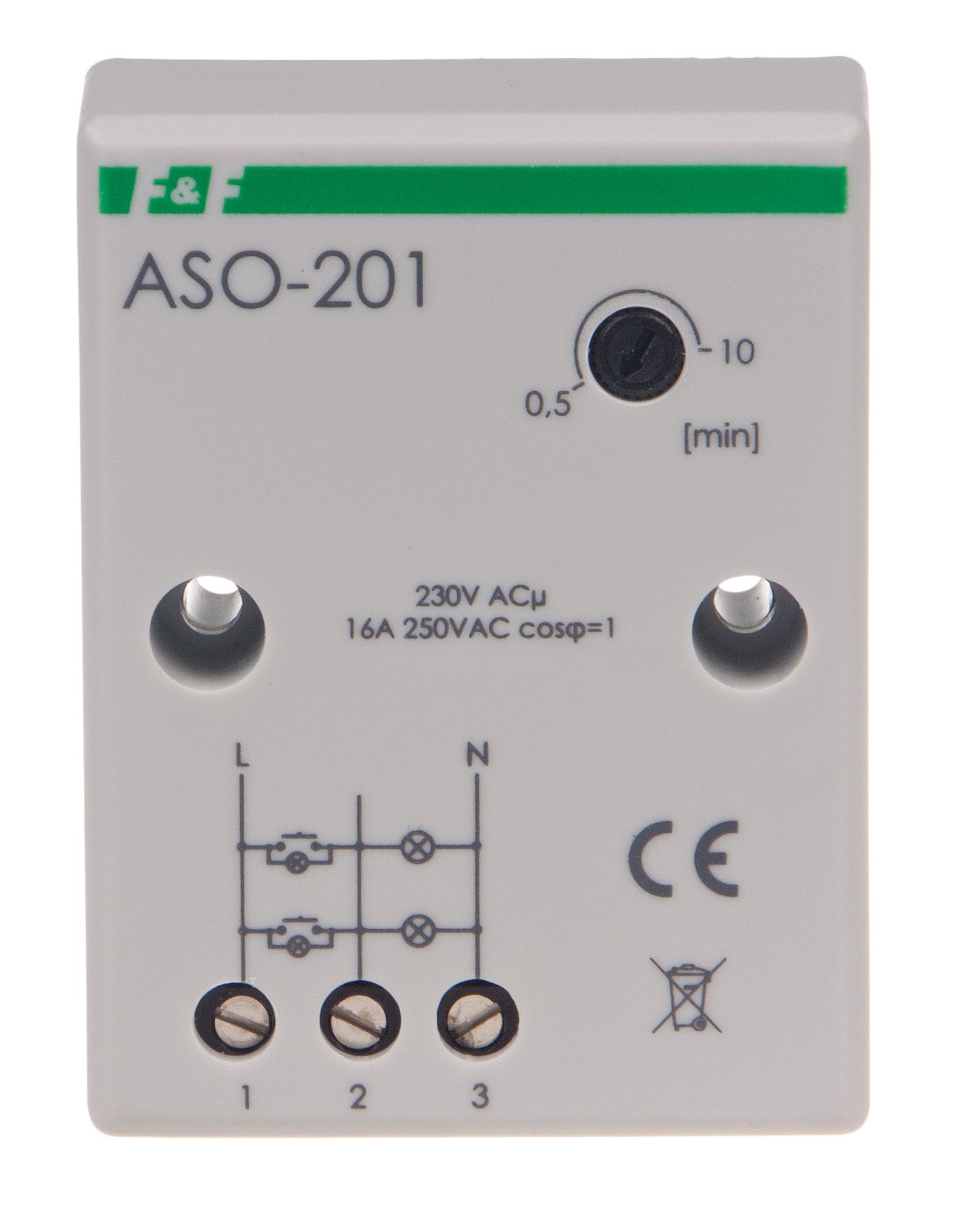

ASO-201 STAIR AUTOMATIC SWITCH NT 16A 1Z 0.5-10MIN 230V AC IP20 SCREW TERMINALS

The stair automatic switch (timer switch) is used to keep the lighting of corridors, staircases, or other areas turned on for a specified time, after which the lighting will be automatically turned off. Supply voltage is 230 V AC.

Application

The product is perfect for lighting corridors, stairs, and other spaces where automatic lighting control is required based on time. Its design ensures easy installation and efficient operation.

Technical Data

• Maximum load current AC-1: 16 A
• Actuating element: relay
• Contact configuration: 1 × NO
• Contact separation: NO
• Response delay: less than 1 s
• Switch-off delay: adjustable 0.5 ÷ 10 min
• Anti-blocking: NO
• Switch-off indication: NO
• Compatibility with illuminated buttons: YES
• Connection: screw terminals 4.0 mm²
• Tightening torque: 0.5 Nm
• Power consumption: 0.56 W
• Operating temperature: -25 ÷ 50 °C
• Dimensions: 51×67×26 mm (± 1 mm)
• Mounting: surface-mounted
• Protection class: IP20
