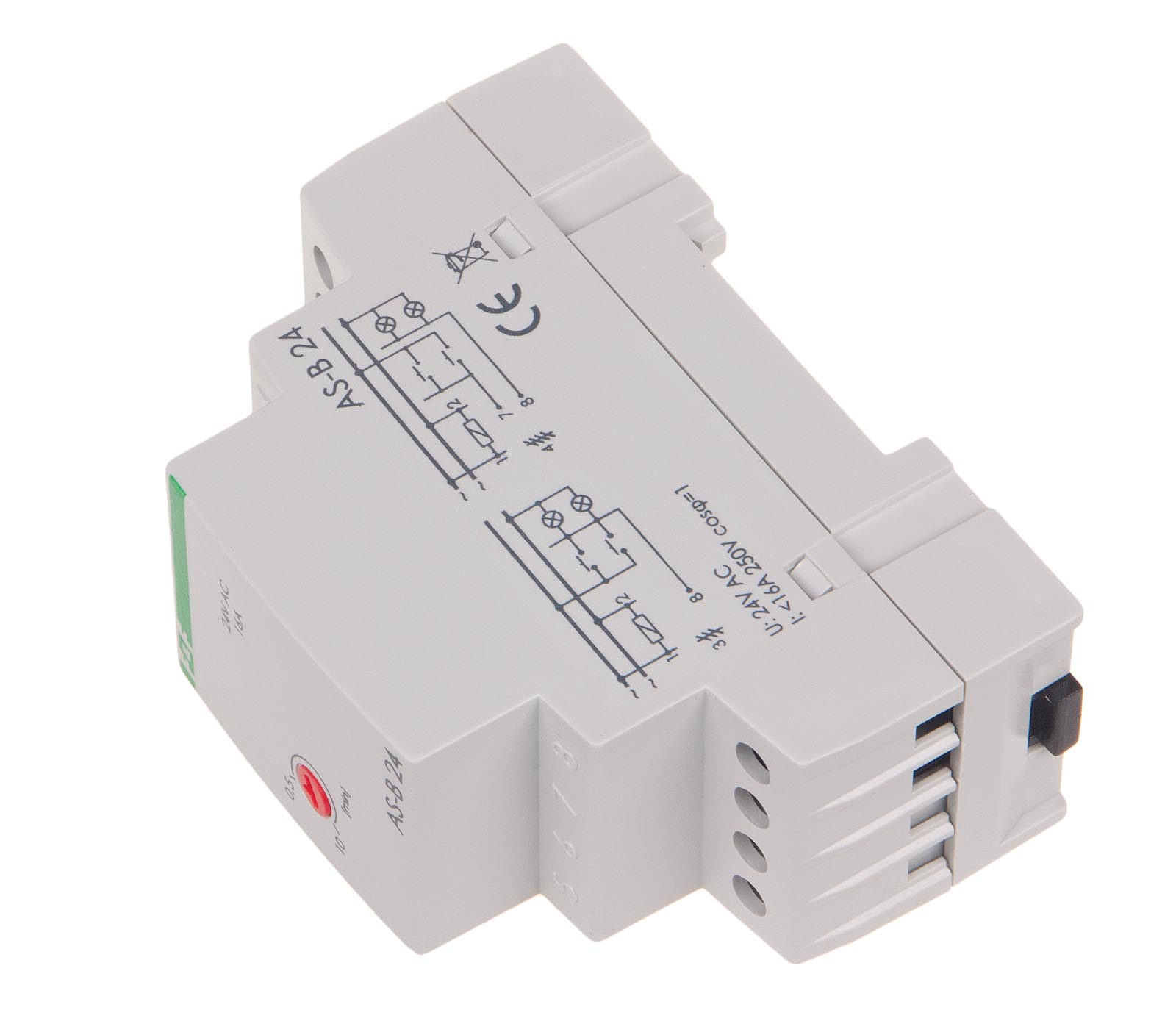

AS-B24 STAIR AUTOMAT 16A 2M 0.5-10MIN 24V AC
The stair automat is designed to keep the lighting in corridors, staircases, or other areas turned on for a specified time, after which the lighting will be automatically turned off.
Application
The operation of the stair automat involves maintaining the lighting for the time set by the knob after pressing the momentary switch. Ideal for use in places requiring temporary lighting activation.
Technical Data
- Power supply voltage: 24 V AC/DC
- Maximum load: 16 A
- Actuating element: relay
- Contact configuration: 1 × NO
- Contact separation: NO
- Response delay: less than 1 s
- Turn-off delay: adjustable 0.5 ÷ 10 min
- Anti-blocking: NO
- Turn-off indication: NO
- Compatibility with illuminated buttons: NO
- Connection: screw terminals 4.0 mm²
- Tightening torque: 0.5 Nm
- Power consumption: 1.2 W
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 2 modules (35 mm)
- Mounting: on a 35 mm rail
- Protection degree: IP20
