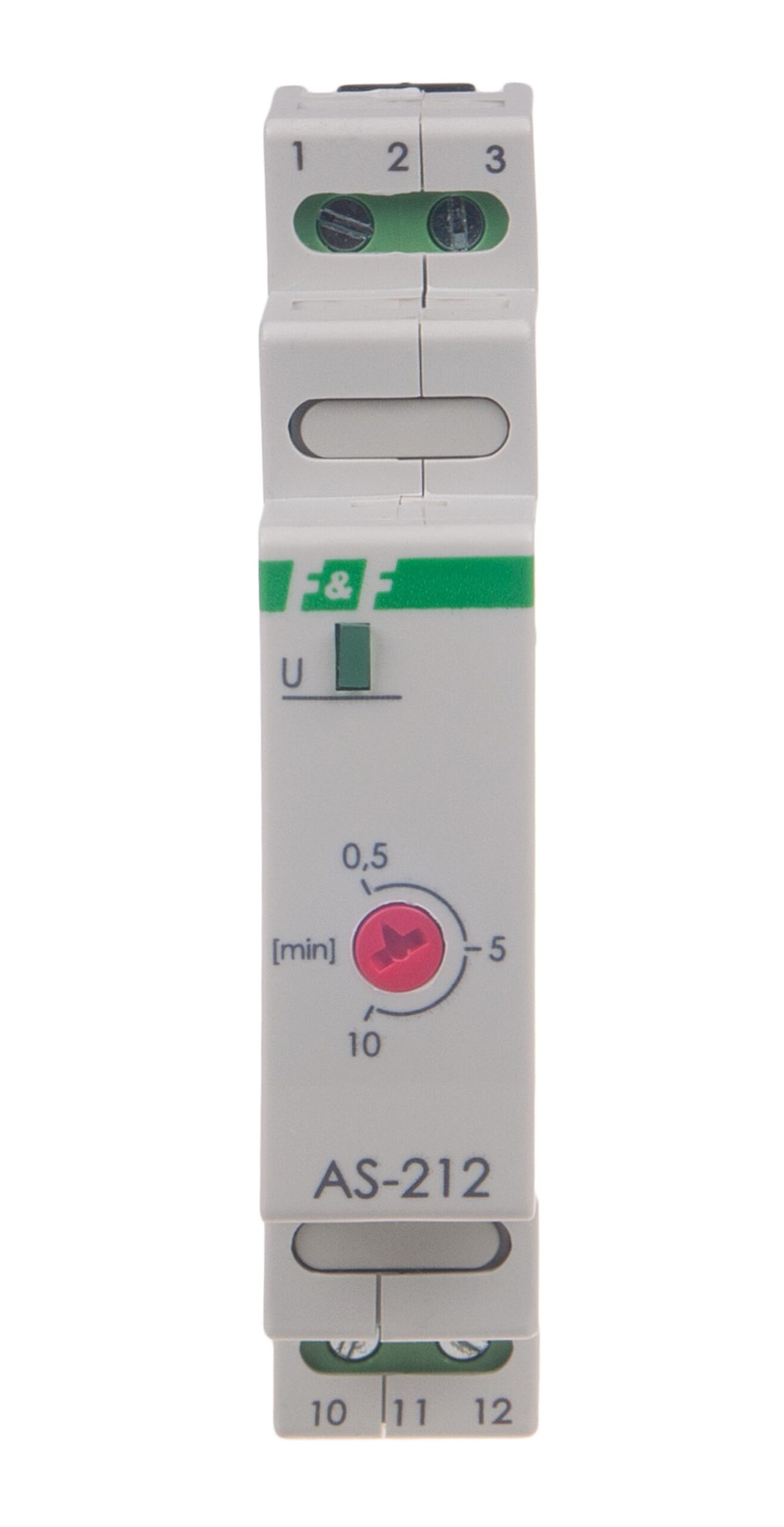

AS-212 STAIR AUTOMAT 16A 1M 0.5-10MIN 230V AC
The AS-212 stair automat is designed for effective management of lighting in corridors and staircases.
Application
The AS-212 stair automat allows for automatic lighting shut-off after a specified time, significantly improving user comfort and energy savings.
Technical Data
- Power supply 230 V AC
- Maximum load 16 A
- Actuating element: relay
- Contact configuration: 1 × NO
- Switch-off delay: adjustable 0.5 ÷ 10 min
- Compatible with illuminated buttons: YES
- Mounting on 35 mm rail
- Protection degree: IP20
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Power consumption: 0.56 W
- Tightening torque: 0.4 Nm
